Carton Packer
SFA-2224-L |
Description：
Tray Packing Machine
Features：
●

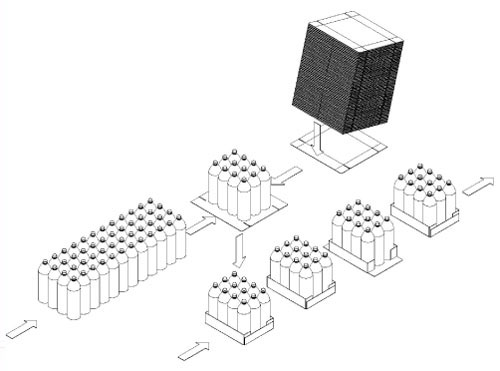

Semi wrapped tray carton packing operation.
●
Man-machine interface screen control.
●
Automatic error message display provides convenient shooting trouble.
●
Applicable for wrapping various products, such as tin plate can,PVC bottle,
PET bottle, glass bottle and aluminum foil box.
●
Parameters can be set and modified on the screen.
●
Scale provided for machine adjustment permits recording and convenience
for adjustment.
●
Indexing transmission system eliminates inaccurate packing problem.
●
Glue spraying is calculated by encoder, ensuring consistent glue spraying
length on each carton and permits adjustment and memorizing at any time.
●
Fast set up for various size.
●
All movable parts are provided with grease nipples for lubrication. Hard-to-
reach bearings located at the machine bottom are centrzlized lubrication at
outside through oil tubes. |
|
|
|
SPECIFICATION |
|
Model |
SFA-2224-L |
|
Power Source |
220V-240V / 50HZ-60HZ |
|
Power Capacity |
7
KW |
|
Air Pressurre |
5-6.0 kg/cm2 |
|
Air Flow Consumption |
600L/min |
|

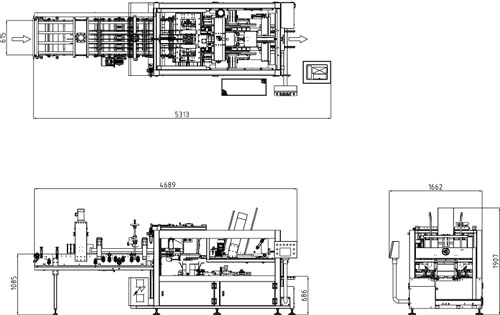

Machine Dimensions |
L4824mm X W1750mm X H1504mm |
|
Machine Weight |
2000kg |
|
Processing Capacity |
20-30 cartons / min |
|
Operation Control |
English screen display system |
|
Packaging Material |
Corrugated Paper |
|
Sticking Method |
Hot Glue |
|
|
|
