Carton Packer
SFA-5421 |
Description：
25-35 second / Layer
Features：
●
Employs English/Chinese touch-sensing screen for maximum operational
convenience. The control also displays the update running conditions and
provides guides for operation and maintenance.
●
The can lift table employ frequency inverted motor for speed control. It fully
avoids bottle or can dropping down caused by a vibration when empty can
pallet is rising for can positioning.
●
Empty bottles out-feed are protected by 4 sides clamp to prevent
bottle
dropping down when pushed out. Bottle pushing is driven by a frequency
inverted motor, which eliminates bottle damage usually occurred by
unsteady air pressure on conventional air cylinder pushing system
●
The paper pads between cans are sucked out automatically, then stacked at
a position for centralized stacking of paper. This avoids can dropping down
caused by manual take-out of paper
●
The empty pallets are stacked automatically. When the pallets are stacked
to a considerable quantity, they can be handled by a fork lift to save labor
effort.
●
Applicable for easy opening cans (aluminum cans,plastic bottles PET, PE
and PVC) and glass bottles. |
|
|
|
SPECIFICATION |
|
Model |
SFA-5421 |
|
Power Source |
220V-440V / 50HZ-60HZ |
|
Power Capacity |
17 KW |
|
Air Pressurre |
6.0 kg/cm2 |
|
Air Flow Consumption |
400L/min |
|

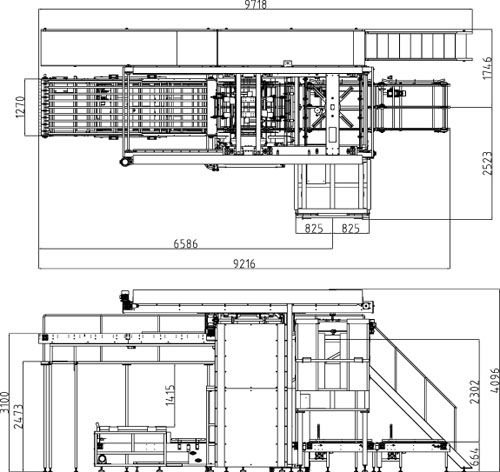

Machine Dimensions |
L9718mm X W4269mm X H4096mm |
|
Machine Weight |
4200kg |
|
Processing Capacity |
30-40 sec / layer |
|
Operation Control |
MMI-Chinese and English Display System |
|
Suitable Processing Package |
Can Glassed PET |
|
|
|
